Vibro Sorter

We deliver Technology & Quality with experience

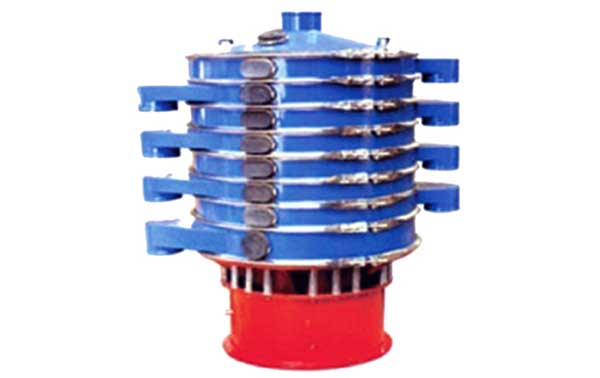

Vibro Sorter

Salient feature
  • Low operating cost
  • Low power recruitment
  • No transmitted vibration
  • High capacity, minimum space
  • Minimum screen blinding
  • Longer screen life
  • Grades sorted efficiently into perfect size
  • Re-sorting not necessary
  • Ensures continuous low of production
  • Easily accessible opening for cleaning and inspection for all the decks without dismantling
  • Screwing deck and frames are interchangeable
  • No loss of bloom
  • Nearly maintenance free

Grade

Wire Mesh Size

Thickness of Wire SWG

BPS

Through 6, Above 8

Mesh 6 x SMG 20

Mesh 9 x SMG 22





BOPL

(a) Through 8, Above 10

Or

(b) Through 10, Above 12

(a) Mesh 10 x SMG 24

or

(b) Mesh 10 x SMG 22 to 23

BOP

(a) Through 10, Above 12

Or

(b) Through 12, Above 14

(a) Mesh 10 x SMG 22

or

(b) Mesh 12 x SMG 23 to 25

BOPsm

(a) Through 10, Above 12

Or

(b) Through 12, Above 14

(a) Mesh 12 x SMG 24

or

(b) Mesh 14 x SMG 25

BP

(a) Through 12, Above 18

Or

(b) Through 14, Above 18

(a) Mesh 18 x SMG 26

(b) Mesh 18 x SMG 26

(c) Mesh 14 x SMG 24

BPsm

Through 18, Above 20

Mesh 18 x SMG 27 to 28

OF

(a) Through 18, Above 24

Or

(b) Through 20, Above 24

(a) Mesh 24 x SMG 28

or

(b) Mesh 20 x SMG 28 to 30

PF

(a) Through 18, Above 24

Or

(b) Through 20, Above 24

(a) Mesh 24 x SMG 28

or

(b) Mesh 20 x SMG 28 to 30

PD

Through 24, Above 30

Mesh 30 x SMG 28 to 35

D

Through 30, Above 40

Mesh 40 x SMG 35

CD

Through 40, Above 50

Mesh 50 x SMG 37

Sortie – Specification

Dia of screen deck in mm

600

900

1200

1500

1800

Distance from centre to centre of discharge spout in mm

405

555

745

885

1035

Feed inlet dia in mm

150

150

210

210

210

Dia of discharge spout in mm

150

150

210

210

210

Dia of bottom base in mm

500

680

920

1120

1265

Height of bottom base in mm

250

250

365

365

365

Discharge height of bottom deck in mm

400

400

540

540

540

height of top deck in mm

210

210

210

210

210

Total height of 5 deck machine in mm

1010

1010

1265

1265

1265

Total height of 7 deck machine in mm

1228

1228

1483

1483

1483

Motor (H.P.)

0.5

0.5

1.5

2.0

3.0

Capacity in Kgs / HR of made tea

120

275

500

750

1050

P.N. : – Other sizes available upon required. In pursuance of company’s policy for constant improvement, we reserve the right to change the specifications mentioned above without any prior intimation.
