MAINLAND ENGINEERING PVT. LTD.
Goldy Lathe Cum Chasing Machine
We deliver Technology & Quality with experience
CHASING MACHINE

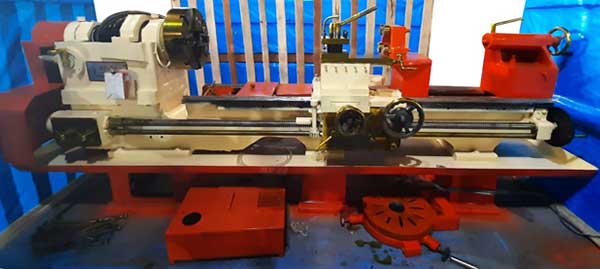

Goldy Lathe Cum Chasing Machine
MEPL presents well designed Lathe cum Chasing Machine for chasing CTC stainless Steel Segment Rollers and any type lathe works.
Salient Features
- Heavy Duty Cast Iron (Grade-IS210 Gr.20) body and precision lead screw with P.B. Metal Nut.
- Single / Double Clutch system Gun Metal bushes fitted with precious Head Stock.
- 4 jaw independent 16” Dog Chuck and two types of heavy Tail Stock.
- Easy to operate and low maintenance machine.
- Multi Purpose Lathe with chasing attachments.
- The ‘V’ guide ways accurately aligned saddle.
- The heavy tool post can hold 4 different tools at a time.
- Two types of Tail Stock provided for Lathe and Chasing works.
- Special hardening of bed can be done optionally at extra cost.
Technical Specifications:
Model | Bed Length | Width of Bed | Centre Height | Swing in Gap | Admit Between Centre | Spindle Hollow | Lead Screw Thread(TPI) | No. of Spindle Speed | HP Required |
Goldy 8 | 8.00” | 16” | 14” | 39” | 49” | 3.125” | 2 | 6 | 3 |
Goldy10 | 10.00” | 18” | 16” | 47” | 68” | 3.500” | 2 | 6 | 3 |
Goldy 12 | 12.00” | 18” | 16” | 47” | 92” | 3.500” | 2 | 6 | 3 |
