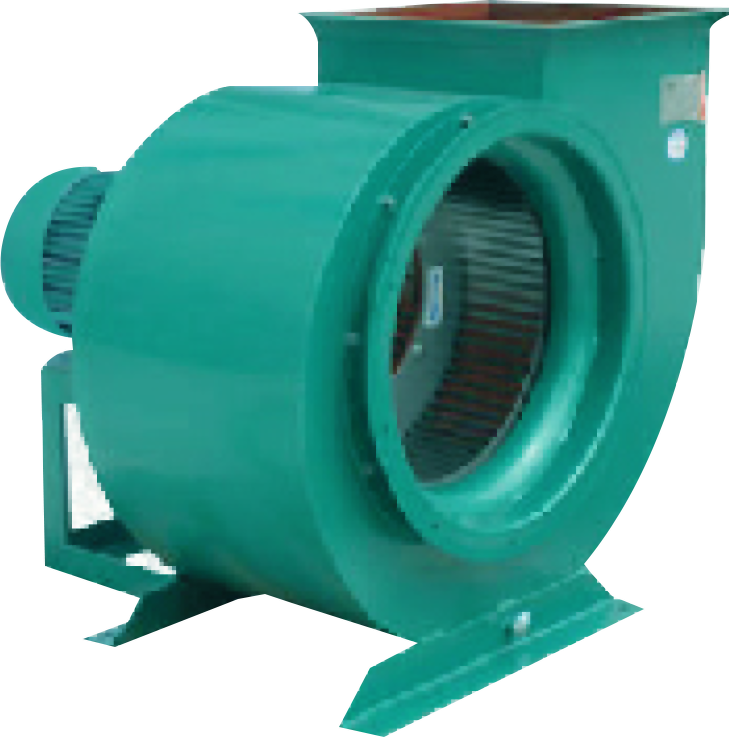

Appolo Centrifugal Flow Fan
CENTRIFUGAL FAN
Appolo Centrifugal Flow Fan
- Suitable for continuous Fermenting Machine.
- Smooth mechanical performance.
- Vibration free operation.
- Optimum air delivery at minimum power consumption.
Performance Characteristics :
Apollo Air Centrifugal Fans are used for providing cold air trough fermentation units of fermenting machines. Impellers are die pressed in mild steel to obtain correct blade profiles. The complete impeller assembly is mounted on heavy duty bearing & housed in mild steel casing. The fans may be arranged for motor drive, clockwise or counter-clockwise rotation with different discharge arrangements.
Single-vane or Butterfly type Dampeners for Centrifugal Fans can also be supplied. Hot Air Centrifugal Fans for use in withering troughs along with induced draught Fans are also supplied.
Apollo Air Centrifugal Centre
Model | Impeller Dia | Static Pressure | Air Delivery | Fan RPM | Motor | |||
CFM | M3/HR | KW | HP | RPM | ||||
ACF – 1 | 19” | 2.5” W.G. | 6000 | 10200 | 822 | 3.7 | 5 | 1440 |
AC F- 2 | 24” | 2.5” W.G. | 8000 | 13520 | 780 | 5.5 | 7.5 | 1440 |
Apollo-Air Induced Draught Fans
Technical Specifications:
Model | Impeller Dia | Motor | Fan RPM | Starter | ||
KW | HP | RPM | ||||
AID – 1 | 20 | 3.7 | 5 | 1440 | 600 | DOL |
AID – 2 | 25 | 3.7 / 5.5 | 5 or 7.5 | 1440 | 600 | DOL/FASD |
AID – 3 | 30 | 7.5 | 10 | 1440 | 600 | DOL/FASD |
